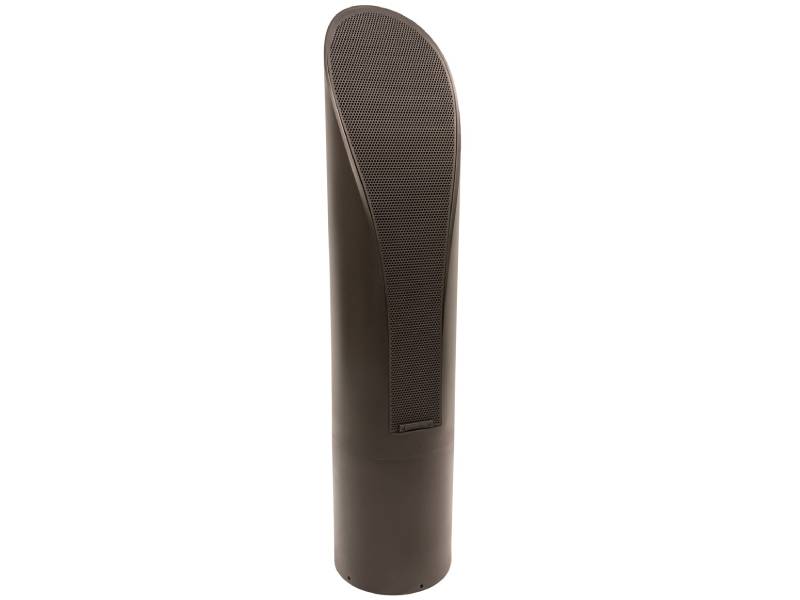

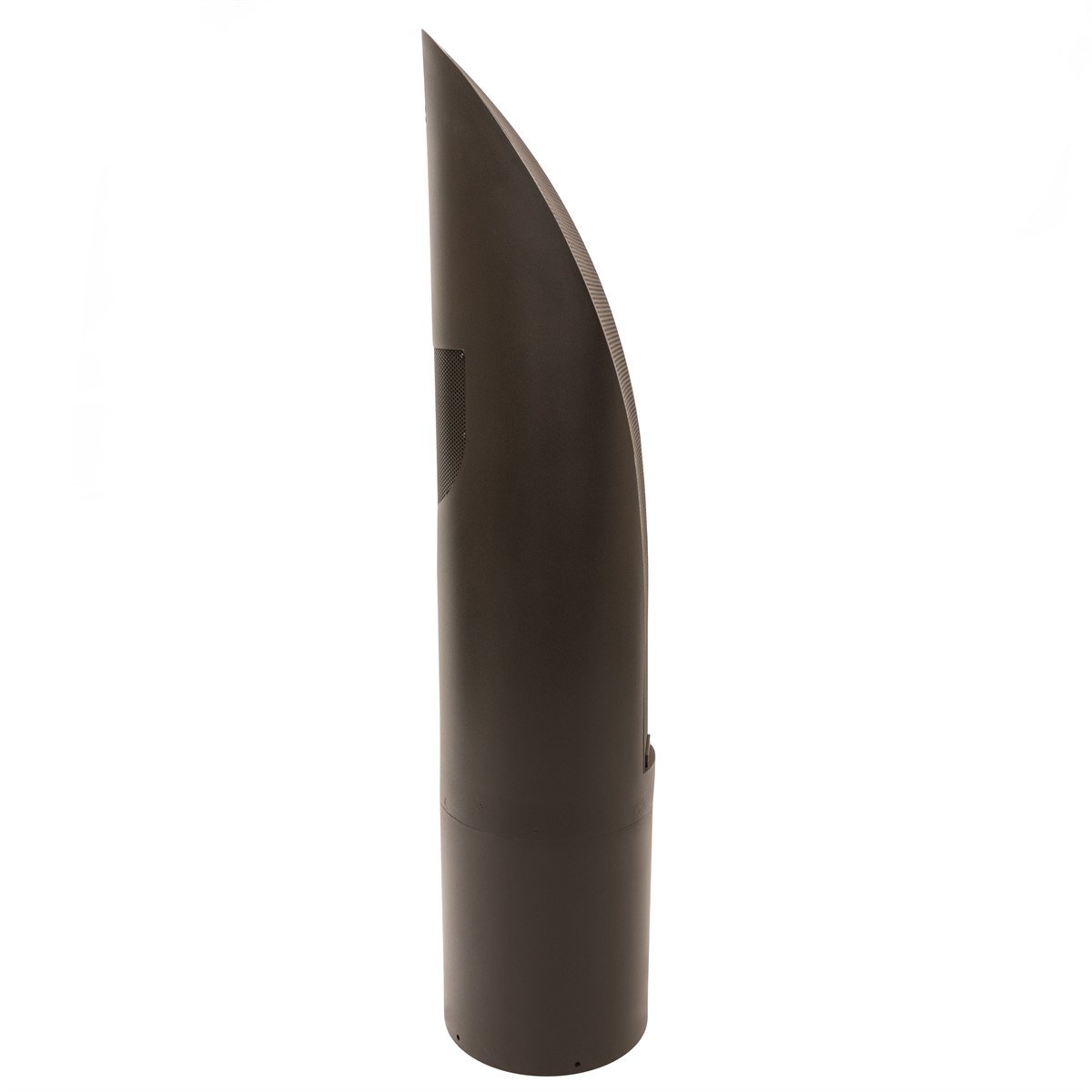

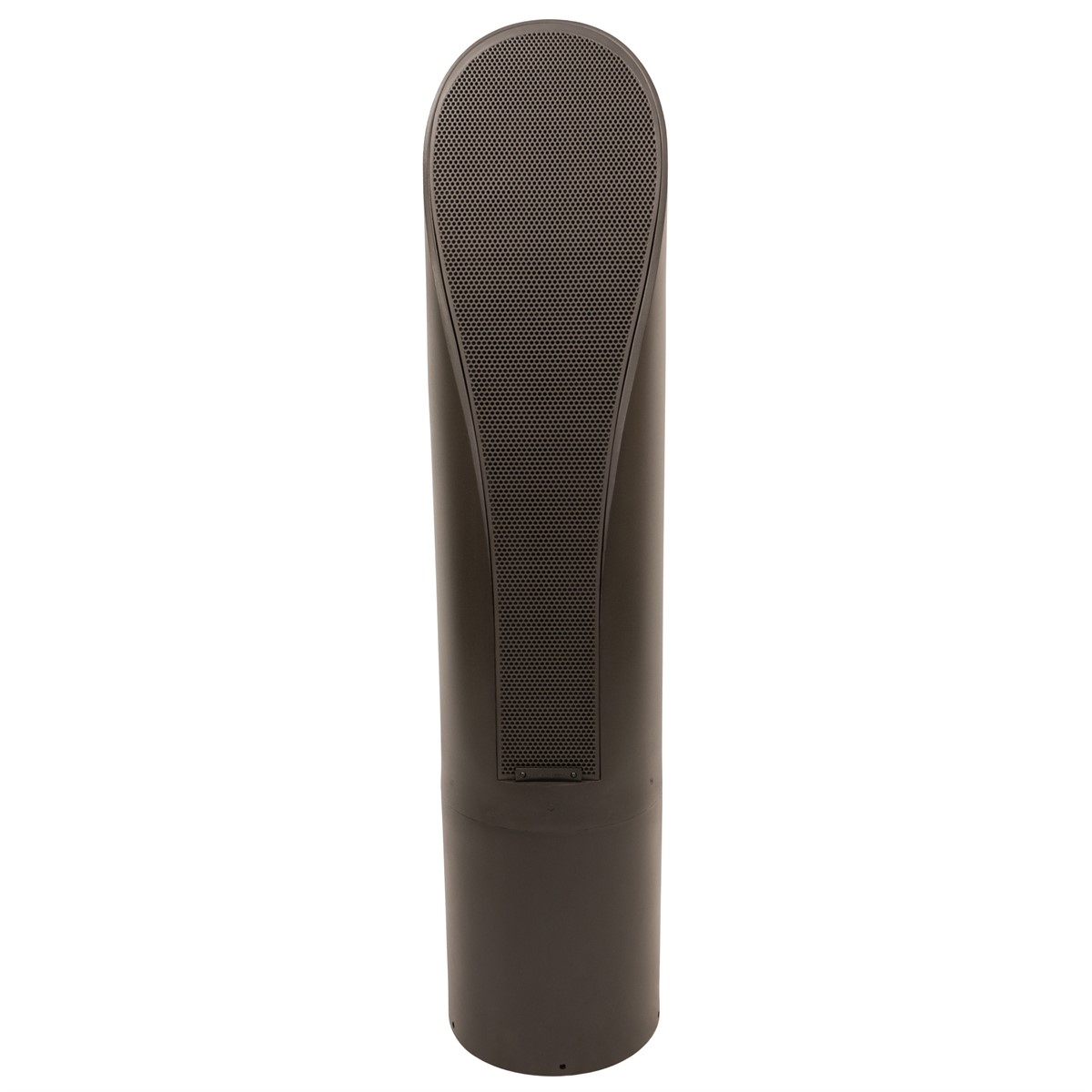

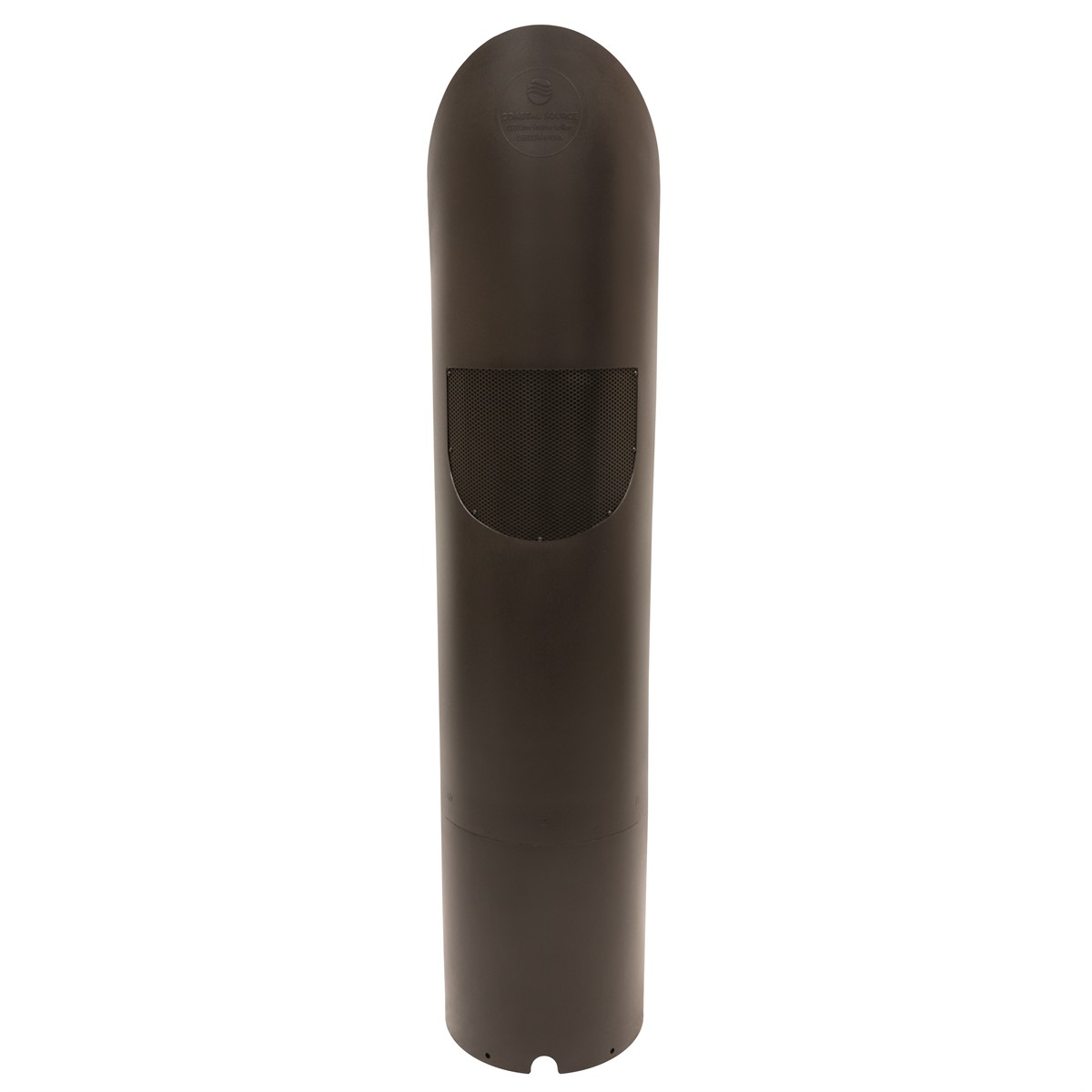

Coastal Source 12.0 Line Source Bollard Outdoor Speaker - LS12
You may also like
The pinnacle of Coastal Source technology, the Line Source Bollard Speaker brings best-in-class durability and performance that defies the elements.
Features & Benefits
- Line array design generates high SPL & fidelity over very long distances
- Variable waveguide technology enhances performance for near-field, mid-field, & far-field listening areas

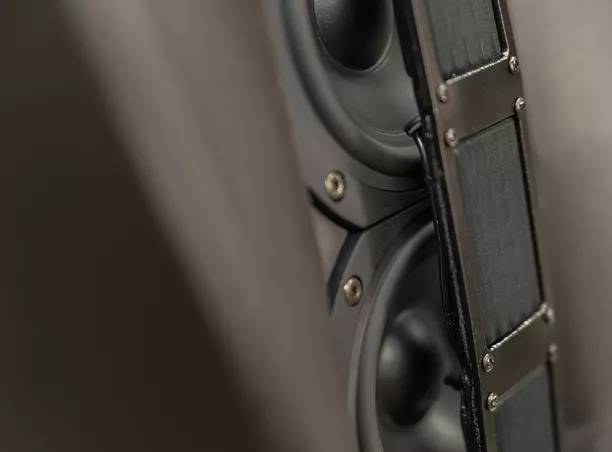

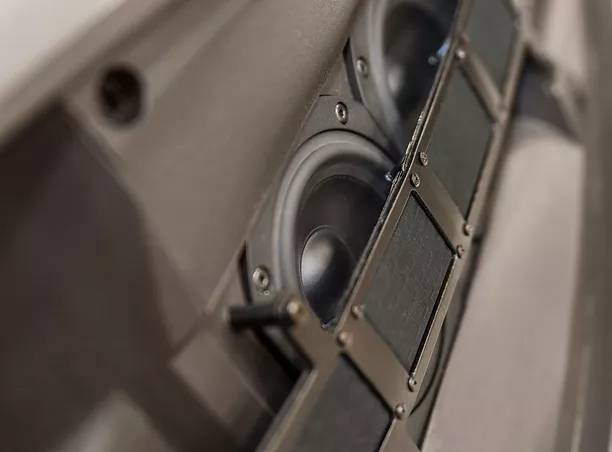

- Ribbon tweeters provide a detailed, articulate response
- Integrated high-power bandpass subwoofer fills out full frequency range
- 1000W power handling & incredible efficiency make this speaker a true outdoor marvel
Highest Fidelity
Our ground plane Line Source speaker takes full advantage of line array technology for high SPL & fidelity over long throw distances. Form follows function in this beautiful design, resulting in an enhanced line array performance that leaves you speechless.
Highest Volume

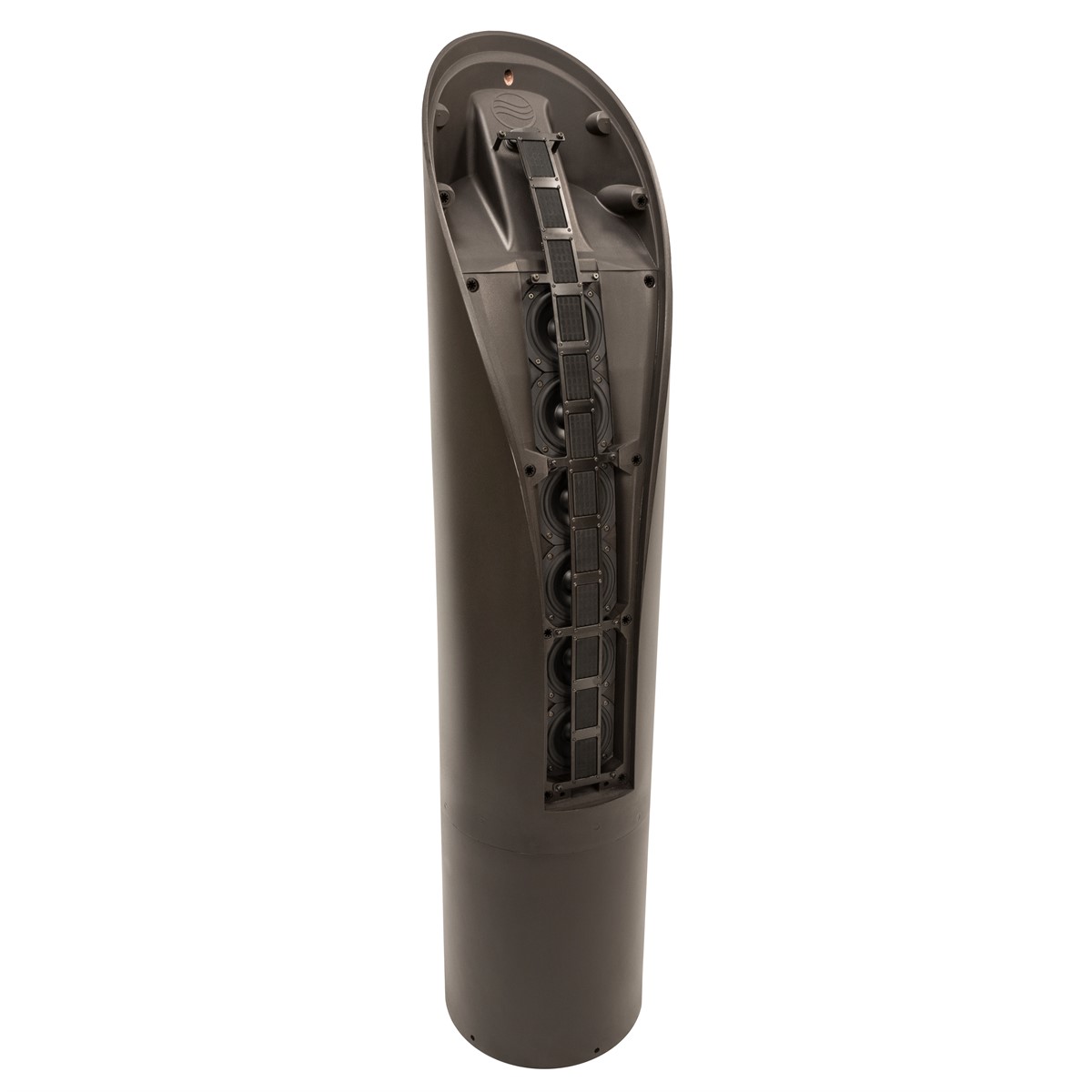

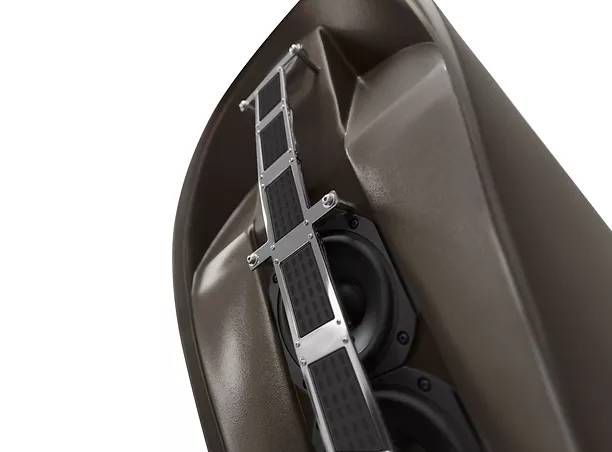

Get more with our patent pending variable waveguide technology and line array driver complement. With the Line Source, the variable waveguide controls and narrows dispersion along the array, directing the lower driver array to handle the far field listening area.
Highest Performance

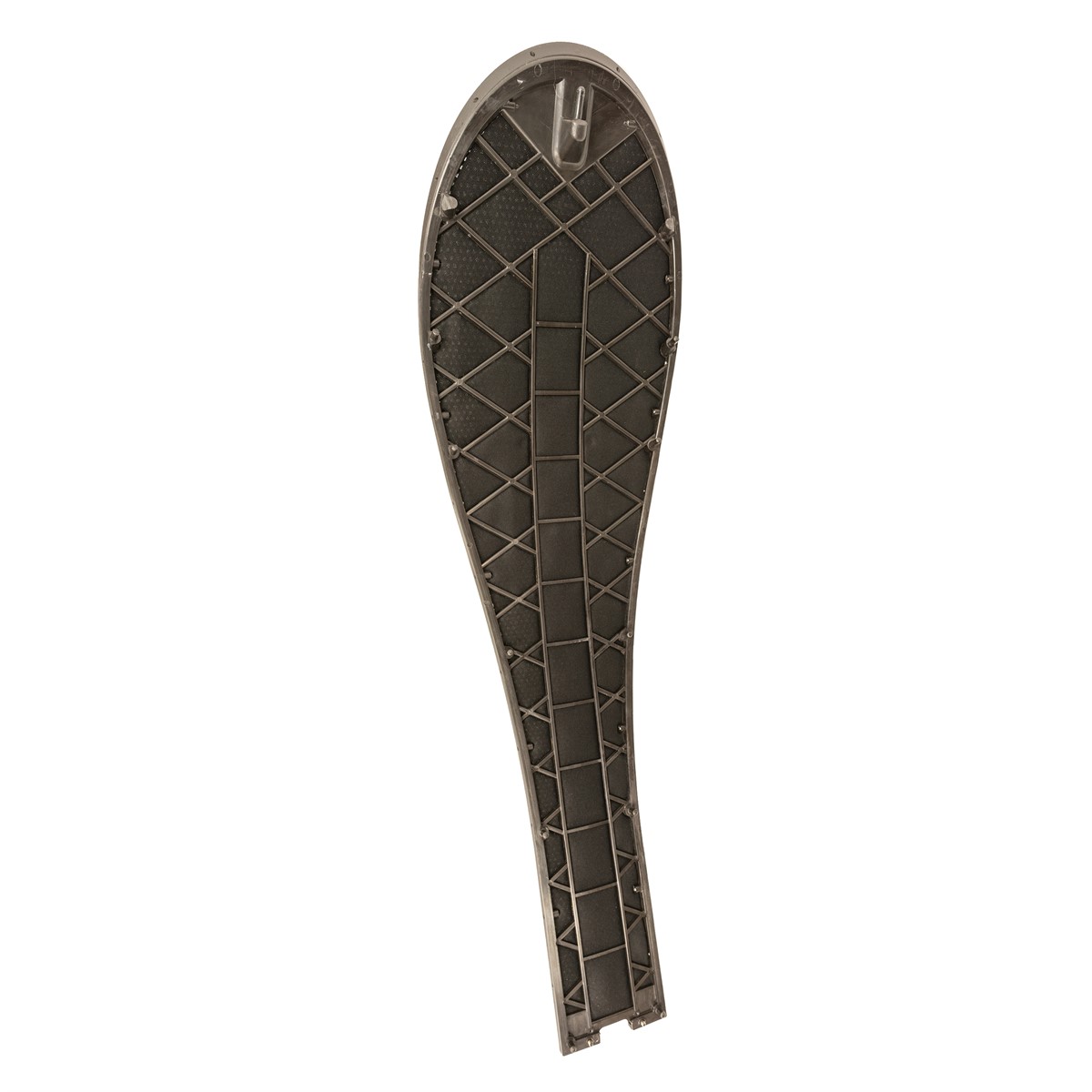

The proprietary Laminar Flow Grill System consists of a four-layer sandwich grill system to protect the drivers from performance damaging UV, water, dust, impurities, and corrosion, and to keep water and ice from puddling.
| FEATURES | |
|---|---|
| Size: | 54.375 in. (H) x 12.375 in. (Ø) |
| Weight: | 88 lbs |
| Construction: | Rotomolded color through composite |
| Finish: | Brown |
| Tweeter: | (12) Radian Pro 3” Planar Ribbons |
| Mid-Bass Woofer: | (6) Radian Pro 4” Cones |
| Subwoofer: | Radian Pro 10” Laminate Cone |
| Power Handling (Complete Speaker): | 1,000W Max Power |
| Power Handling (Low Freq.): | 400W Max Power |
| Power Handling (Mid/High Freq.): | 600W Max Power |
| Minimum Amplifier Power (Low Freq.): | 200W |
| Minimum Amplifier Power (Mid/High Freq.): | 100W |
| Frequency Response: | 35Hz - 20kHz |
| Efficiency: | 94dB 1w/M |
| Dispersion: | 120° @ -6dB |
| Coverage Area: | 100’ (120° Cone) |
| Impedance: | 8 ohms |
| Mounting: | Freestanding, Partial Burial |
| Wiring: | 8C16 Uni-Connect Input & Output |
| Patent Number: | US 11,044,540 |
