Kaleidescape Terra Prime Movie Servers - K0112-0120

Terra & Terra Prime Movie Servers
Terra and Terra Prime® movie servers store Kaleidescape movies, TV series, and concerts. Kaleidescape movies are downloaded asynchronously and then played back from local storage. This enables playback with full fidelity, irrespective of internet connectivity.
Kaleidescape movie files are typically ten times larger than streamer movies, retaining lossless audio and near lossless video fidelity from studio masters. By contrast, streaming movie files are heavily compressed to create small movie files that can be streamed over the internet.
Kaleidescape movies are played back on Strato movie players. The Strato V movie player can store about ten downloaded 4K movies, while Strato E and Strato M store roughly six. For greater movie storage capacity and immediate playback of more movies, you can group Strato V, E, or M with up to four Terra movie servers.
When Strato V, E, or M is grouped with a Terra movie server, its internal storage is disabled (in favor of more scalable server storage), and the full Kaleidescape user experience is enabled, including the list view and iconic cover shuffle view, which look and work better with larger movie libraries.

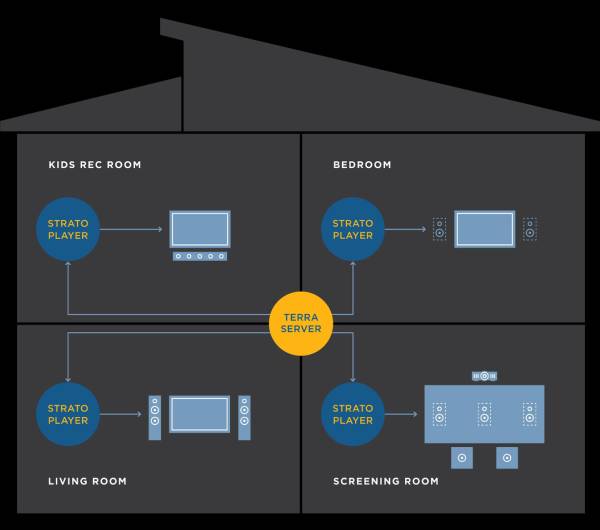

Whole-Home Performance
Terra movie servers ensure maximum storage flexibility while supporting Strato movie players throughout your home.

Multiple Homes
Add a Kaleidescape system to all your homes. Kaleidescape movies can be downloaded on up to five systems registered to your movie store account.
| Color | |
|---|---|
| SSD Mini: | Black painted steel |
| HDD: | Silver anodized aluminum |
| DOWNLOAD SPEED | |
| Downloads Kaleidescape high-bitrate 4K movies in as little as: | SSD: 4 minutes HDD: 8 minutes |
| SIMULTANEOUS PLAYBACKS | |
| Serves simultaneous playbacks of Kaleidescape high-bitrate 4K movies to the following number of network-attached Strato movie players: | SSD: 25 HDD Full Size: 10 HDD Compact: 5 |
| Specifications | |

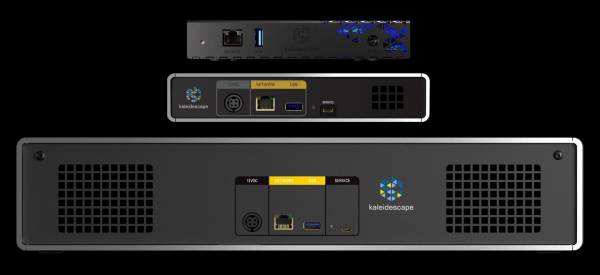

| NETWORK | Ethernet cable link required Capable of 2.5 Gigabit (recommended) and 1 Gigabit (minimum) |
| OTHER CONNECTION | USB 3.0 (reserved) |
| EXTERNAL POWER ADAPTER | |
| Full Size & Compact: | 2.6×1.4×6.5in (6.6×3.5×16.5cm) 150W with detachable line cord 100-240V, 50-60Hz universal input 12VDC @ 12.5A |
| Mini: | External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground |
| RACK MOUNTS (Sold Separately) | |
| Full Size: | Rack shelf available for mounting one unit in a 19in rack, 2RU space |
| Compact: | Rack shelf available for mounting one or two units in a 19in rack, 1RU space |
| Mini: | Rack shelf available for mounting one or two units in a 19in rack, 1RU space |
| Dimensions | |
| Full Size: (W x H x D) | 17.0in x 3.5in x 10.0in (43.2cm x 8.9cm x 25.4cm) |
| Compact: (W x H x D) | 7.87in x 1.52in x 14.33in (20.0cm x 3.9cm x 36.4cm) |
| Mini: (W x H x D) | 6.4in x 1.1in x 6.4in (16.3cm x 3cm x 16.3cm) |
| Weight | |
| SSD Mini: | 1.7lbs (0.77kg) |
| HDD Compact: | 7.2lbs (3.3kg) |
| HDD Full Size: | 15.4lb (7.0kg) with no drives installed 21.6lbs (9.8kg) with four hard drives |
| DRIVES | |
| SSD Mini: | Two integrated solid-state TLC flash drives |
| HDD Compact: | One integrated hard disk drive |
| HDD Full Size: | Four removable hard disk drives |
| Environment | |
| Operating: | 41 to 95°F (5 to 35°C) |
| Storage: | -4 to 140°F (-20 to 60°C) |
| Relative humidity: | 20 to 80% (operation) 5 to 90% (storage) |
| Maximum operating altitude: | 10,000ft (3,048m) |
| VENTILATION | |
| Airflow: | Full Size: 10 CFM (17 m3/hr) max Compact: 5 CFM (8.4 m3/hr) max Mini: Place in an area with circulating air. Minimum 1in (2.5cm) space at the front Minimum 2in (5cm) space at the rear |
| Mini: | Minimum 0.25in (0.64cm) space on top |
| POWER | |
| SSD Mini: | Max consumption: 23W Typical: 15W |
| HDD Compact: | Max consumption: 29W Typical: 24W |
| HDD Full Size: | Max consumption: 48W Typical: 43W |
| FAN NOISE | |
| SSD Mini: | None (no fan) |
| HDD Compact: | Typical: 25 dB(A) |
| HDD Full Size: | Typical: 29 dB(A) |
| Certifications | |
| CERTIFICATIONS | CSA 62368-1 IEC 62368-1 FCC CLASS B CE AU/NZ Regulatory Compliance Mark (RCM) RoHS Compliant |
| MOVIE STORAGE | |
| 4K Resolution: | ~16.5 movies per TB |
| HD Resolution: | ~27 movies per TB |
| SD Resolution: | ~150 movies per TB |
| STORAGE OPTIONS | |
| SSD Mini: | 8TB |
| HDD Full Size: | 120TB |
