Kaleidescape Mini Terra Prime 8TB SSD Movie Server - K0115-0008-SSD

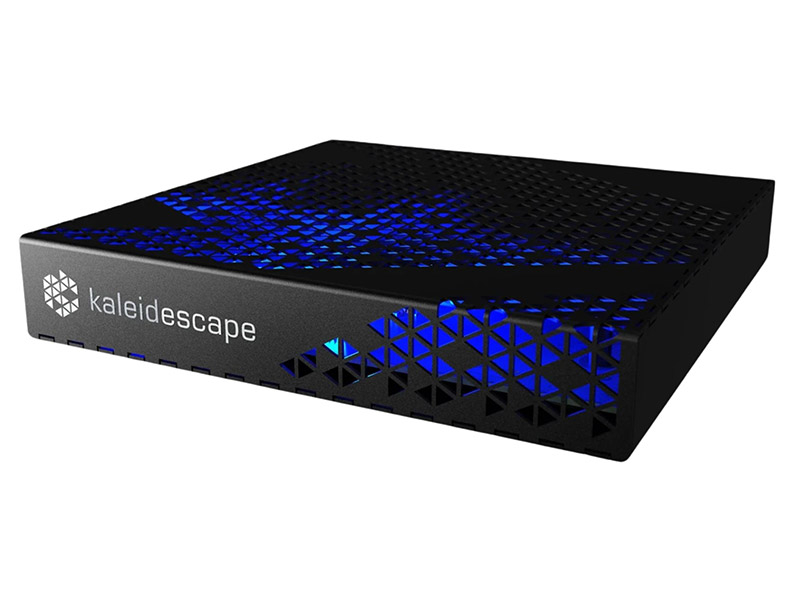

Mini Terra Prime Movie Server
Kaleidescape’s new solid-state movie server. Mini Terra Prime stores high-bitrate movies, TV series, and concerts downloaded from the Kaleidescape movie store and plays them back on network-connected Strato movie players.
- Small. 8TB of solid-state storage, enough for 125 4K movies, in a package the same size as Strato E.
- Silent. Convection cooled, no fan.
- Fast. Downloads movies in as little as 4 minutes over 2.5 gigabit Ethernet.
- Powerful. Delivers up to 25 simultaneous movie playbacks without sacrificing performance.
- Scalable. Add more movie players and servers for whole-house entertainment.
Solid-State Performance
Mini Terra Prime features 8TB internal solid-state storage, enough to store approximately 125 high-bitrate Kaleidescape 4K movies. Movies download in as little as 4 minutes over a 2.5 gigabit Ethernet connection. Mini Terra Prime supports up to 25 simultaneous playbacks, and up to four servers can be grouped together in a system for more storage.
Award-Winning Interface
Terra Prime movie servers unlock the full Kaleidescape experience. Renowned for its ease of use, our industry-leading interface provides multiple ways to interact with your movie library.

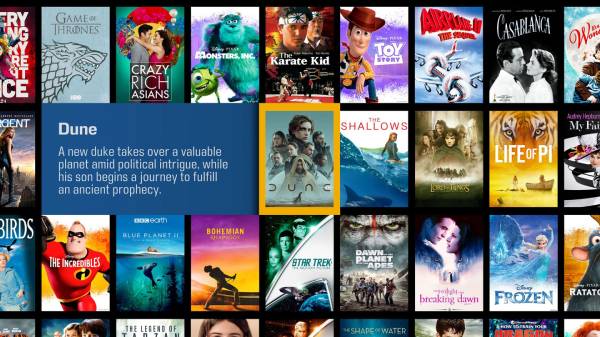

With our iconic covers view, watch movies shuffle as Kaleidescape intelligently organizes your library, bringing related movies into view.

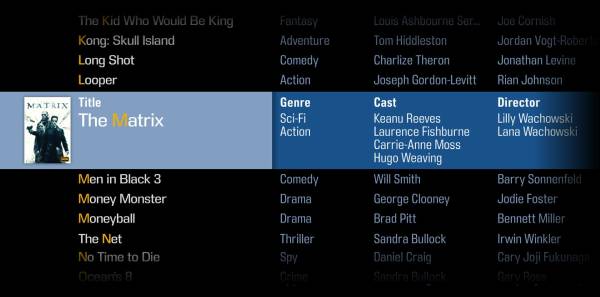

Your Personal Collection
With Kaleidescape, every title in your personal movie library is there for a reason, chosen by you.
Play trailers, create custom collections, or jump to your favorite scene or song.
Parental Controls Made Simple
Designed with your family in mind. Kaleidescape makes it easy to set a rating limit on a room-by-room basis, you can prevent the Kaleidescape system from even displaying the movies you don’t want your kids to see.
Exclusive child remote. Kaleidescape’s child remote activates a user interface designed just for toddlers. At the press of any button, your little ones will see a text-free covers view, showing only the movies you’ve selected for them in advance.

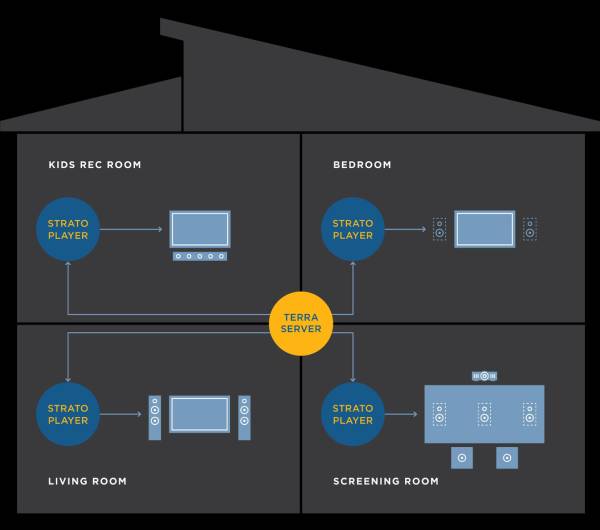

Ultimate Scalability
Terra Prime ensures maximum storage flexibility. A Kaleidescape system can have up to four Terra Prime servers and any number of Strato movie players without sacrificing performance.
Add a Kaleidescape system to all your homes. Kaleidescape movies can be downloaded on up to five systems registered to your movie store account.
Custom Installation
Mini Terra Prime can be tucked behind a TV or placed on a shelf, as long as you provide a minimum of 0.25in clearance on top for convection cooling. For a more customized installation, official Kaleidescape rack shelves and wall mount solutions are available.
| Specifications | |
|---|---|
| CASE | Black painted steel |
| DOWNLOAD SPEED | Downloads Kaleidescape high-bitrate 4K movies in as little as 4 minutes over a 2.5 gigabit Ethernet connection |
| SIMULTANEOUS PLAYBACKS | Serves simultaneous playbacks of Kaleidescape high-bitrate 4K movies to 25 network-attached Strato movie players |
| NETWORK | Ethernet cable link required Capable of 2.5 Gigabit (recommended) and 1 Gigabit (minimum) |
| OTHER CONNECTION | USB 3.0 (reserved) |
| DIMENSIONS | 6.4in x 1.1in x 6.4in (W x H x D) (16.3cm x 3cm x 16.3cm) |
| WEIGHT | 1.7lb (0.77kg) |
| POWER | Max consumption: 23W Typical: 15W External power adapter with detachable line cord: 100-240VAC to 12VDC @ 5A, 60W, isolated ground |
| ENVIRONMENT | Operating: 41 to 95°F (5 to 35°C) Storage: -4 to 140°F (-20 to 60°C) Relative humidity: 20 to 80% (operation) 5 to 90% (storage) Maximum operating altitude: 10,000ft (3,048m) Heat output: 78.5 BTU/hr (23W) max Airflow: Place in an area with circulating air. |
| FAN NOISE | Silent (no internal fan) |
| VENTILATION | Front: Minimum 1in (2.5cm) Rear: Minimum 2in (5cm) Top: Minimum 0.25in (0.64cm), to allow for convection cooling |

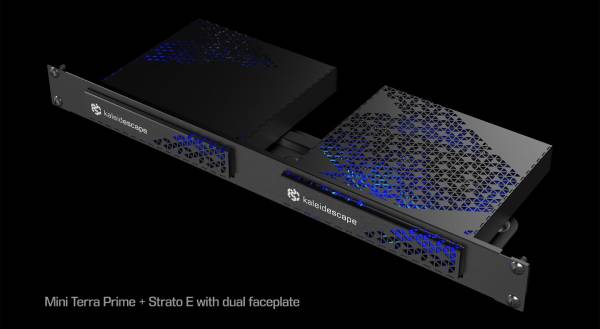

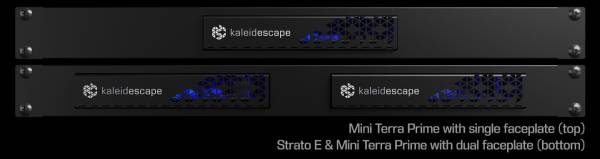

| MOUNTS (sold separately) | Rack shelf with faceplates is available for mounting 1 or 2 Mini Terra Prime servers, Strato E or Strato M players in a 19in rack, 1U space (centered or side-by-side) Wall mount available for mounting behind TV displays (note ventilation requirements) |
| CERTIFICATIONS | CSA 62368-1 IEC 62368-1 FCC CLASS B CE AU/NZ Regulatory Compliance Mark (RCM) RoHS Compliant |
| STORAGE | 8TB SSD: 2x 4TB solid-state drives (available storage for approximately 125 Kaleidescape high-bitrate movies, 216 HD movies, or 1,200 SD movies) |
| MEDIA | Kaleidescape movie store downloads: 4K Dolby Vision, 4K HDR10, 4K SDR, HD, and SD quality |
