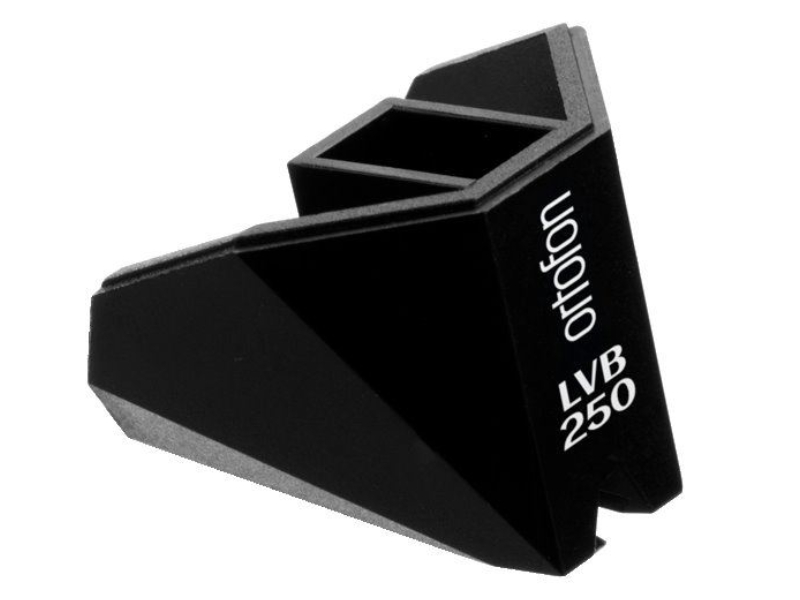

Ortofon Stylus For For 2M Black and 2M Black LVB - Stylus 2M Black LVB
Literature
You may also like
Recommended for following cartridges - 2M Black LVB 250, interchangeable with 2M Bronze and 2M Black.
Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance.
2M Styli interchangeability
2M series styli are interchangeable within the below combinations:
- 2M Red, 2M Blue and 2M Silver
- 2M Bronze, 2M Black and 2M Black LVB 250
- 2M Mono and 2M 78
Special for 2M Red, 2M Blue and 2M Silver phono cartridges:
- 2M Silver will be an upgrade compared to 2M Red due to a special suspension and silver plated copper wire material.
- 2M Blue is an upgrade compared to both 2M Red and 2M Silver thanks to Nude Elliptical diamond which retrieves information from the groove with a higher accuracy
| Specifications | |
|---|---|
| Frequency response | 20-20.000 Hz + 2 / - 0 dB |
| Tracking ability at 315Hz at recommended tracking force | 80 µm |
| Compliance, dynamic, lateral | 22 µm/mN |
| Stylus type | Nude Shibata on Boron cantilever |
| Stylus tip radius | r/R 6/50 µm |
| Tracking force range | 1.4-1.7 g (14-17 mN) |
| Tracking force, recommended | 1.5 g (15 mN) |
| Tracking angle | 20° |
| Stylus colour | Black |
