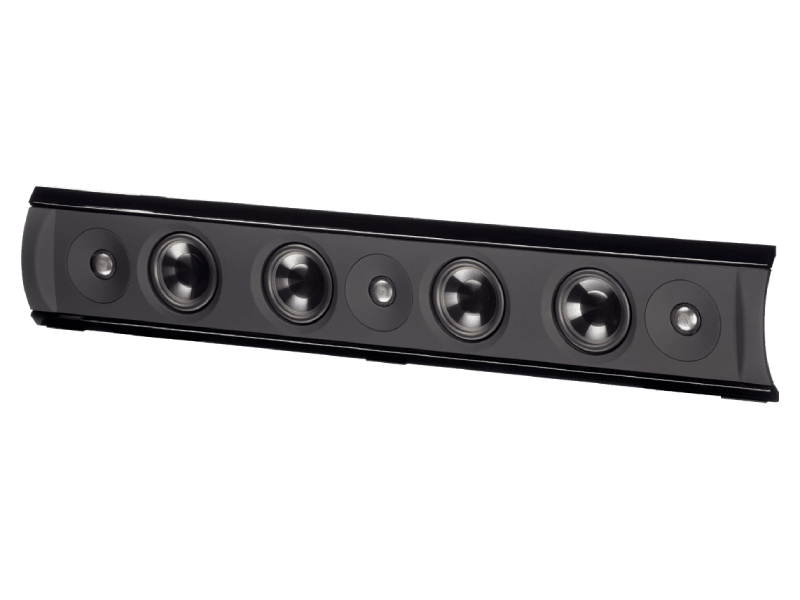

Paradigm LCR Speaker With 7 Driver - Cinema Trio
On-wall left speaker & right speaker & center speaker; 7-driver, 3-channel, 2-way acoustic suspension: option to sit speaker on table or shelf with supports included
Cinema Satellite Tweeter
Superior S-PAL™ Satin-Anodized Pure-Aluminum Domes with powerful neodymium magnets and ferro-fluid cooling for increased power handling! Highs are transparent with a superb sense of air and exceptional spaciousness.
Wire Mesh Tweeter Guard and WaveGuide™ technology ensure a smooth, wide panorama of audiophile-quality sound.
Cinema Satellite Bass/Midrange Driver
Paradigm's Cinema speakers deliver fantastic performance through the clever use of technology. Mineral-filled, polypropylene cones; advanced motor structures and high-temperature voice coils easily identify Cinema speakers as uniquely Paradigm.
Cinema Sub Subwoofer
Superior 8˝ High-Excursion Driver made of a durable reinforced polymer composite that in concert with the superior suspension system and motor/magnet structure allow the cone to travel farther while maintaining effective control.
Built-In High-Current, Discrete Output Amplifier:300 watts Dynamic Peak / 100 watts RMS Sustained.
Dual Ported Design for even and articulate response.
Amplifier Controls: Auto On / Standby / Soft ClippingSubwoofer Cut-Off FrequencySub / Sat Phase Switch – 0° or 180°
| Specifications | |
|---|---|
| Design | On-wall left speaker & right speaker & center speaker; 7-driver, 3-channel, 2-way acoustic suspension: option to sit speaker on table or shelf with supports included |
| CROSSOVER | 2nd-order electro-acoustic at 1.8 kHz |
| FREQUENCY RESPONSE ON-AXIS | ±2dB from 125 Hz - 20 kHz |
| HIGH FREQUENCY DRIVER | One 25-mm (1 in) S-PAL™ dome tweeters, ferro-fluid damped and cooled |
| MID/BASS FREQUENCY DRIVER | Four 102-mm (3-1/2 in) mineral-filled polypropylene cones, 25-mm (1 in) high-temperature voice coils, advanced motor structures with oversized ferrite magnets |
| LOW FREQUENCY EXTENSION | 85 Hz (DIN) |
| SENSITIVITY ROOM / ANECHOIC | 89 dB / 86 dB |
| FREQUENCY RESPONSE 30° OFF-AXIS | ±2dB from 125 Hz - 18 kHz |
| SUITABLE AMPLIFIER POWER RANGE | 15 - 200 watts |
| MAXIMUM INPUT POWER | 70 watts |
| Impedance | Compatible with 8 ohms |
| DIMENSIONS HXWXD | 6.3125" × 36" × 4.0625" (16.0cm × 91.4cm × 10.3cm) |
| WEIGHT | 16.8 lbs. (7.6 kg) |
| Finishes | Black Gloss |
