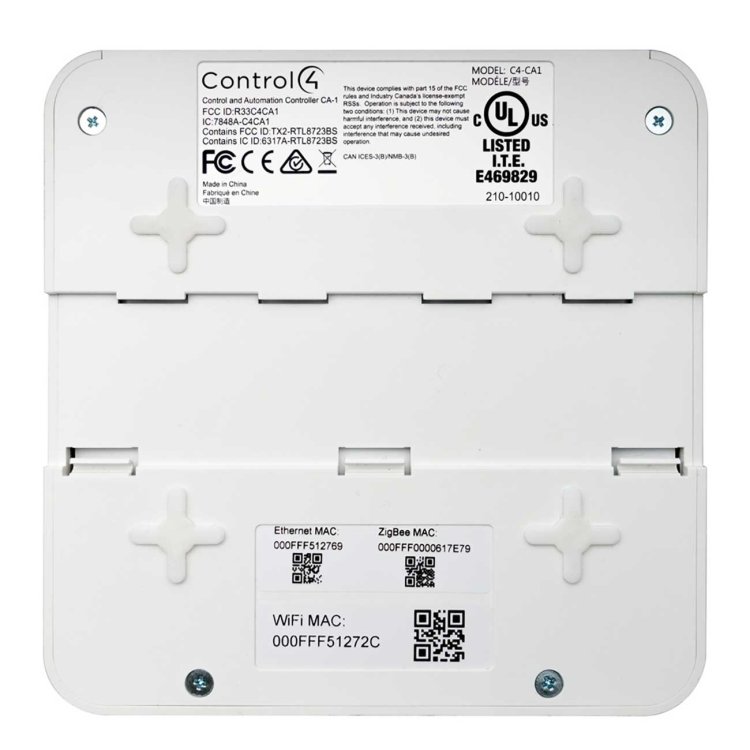

Control4 CA-1 Automation Controller - C4-CA1
You may also like
The Control4® CA-1 Automation Controller is the perfect entry point into Control4 automation built around security, comfort, andconvenience solutions. It has built-in control for IP, ZigBee®, and serial devices, plus an internal slot for a Z-Wave Plus™ module(sold separately). It is designed for homeowners, builders, MDUs, and hotels that want smart experiences that include smart lighting, thermostats, door locks, cameras, sensors, shades, and more.
OvrC Pro remote management is built-in, giving you access to the entire network of IP devices, including third-party products. OvrC delivers enhanced troubleshooting capabilities and diagnostic data that makes remote support easy, eliminating unnecessary truck rolls and enabling you to streamline your business and tackle more jobs – all from the OvrC web or mobile app.
The CA-1 is the foundation that makes smart products work together to deliver rich, orchestrated automation —the smart home experience homeowners truly want.
- The simplest way to experience the Control4 Smart Home
- Orchestrated automation for door locks, shades, cameras, sensors, and lighting
- Built on Control4’s proven OS and ecosystem
- Built-in connectivity for IP, ZigBee, and serial devices
- Expansion slot for optional Z-Wave module
- Perfect for broad-scale deployments
- Can be powered by PoE—making it an ideal tool to expand ZigBee in larger Control4 installations
- OvrC Pro built-in for advanced remote management and monitoring

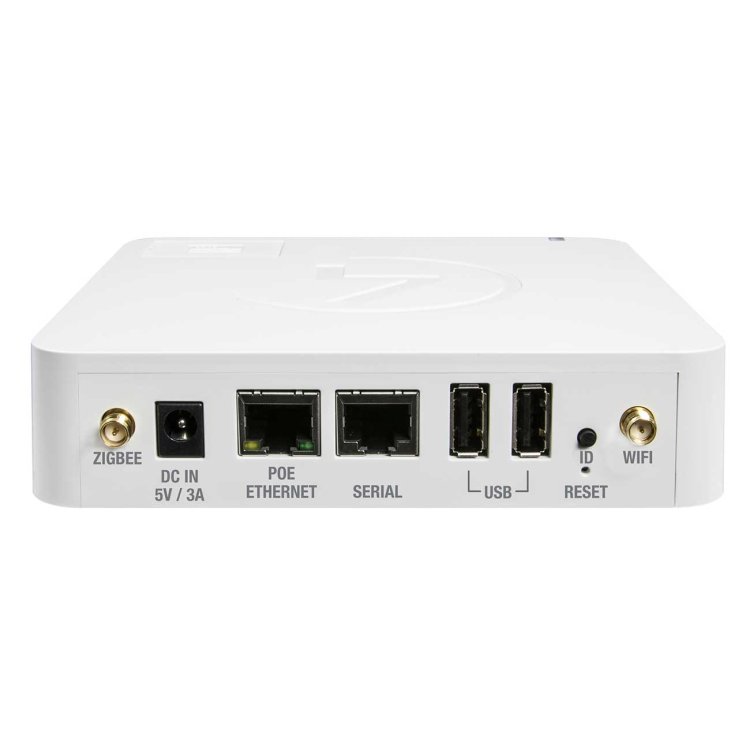

| CONNECTIONS | |
|---|---|
| Network | Ethernet—10/100BaseT compatible (required for controller setup), PoE supported |
| Wireless | Wireless N (2.4 GHz, 802.11n/g/b) |
| Wireless security | WEP, WPA, and WPA2 |
| Wireless antenna | External reverse SMA connector |
| ZigBee Pro | 802.15.4 |
| ZigBee antenna | External reverse SMA connector |
| USB port | 2 USB 2.0 ports, 500mA |
| Serial out | 1 serial out RJ45 port (RS-232) |
| Z-Wave | Integrated expansion slot accepts Control4 Z-Wave modules (sold separately) |
| POWER | |
| Power requirements | 5VDC 3A, external power supply included |
| Power supply | AC power supply accepts 100-240V ~ 50-60 Hz (0.5A) |
| PoE | 802.3af (<13W) |
| Power consumption | Max 15W (51 BTU/hr) |
| MISCELLANEOUS | |
| Operating temperature | 32˚ ~ 104˚F (0˚ ~ 40˚C) |
| Storage temperature | 4˚ ~ 158˚F (-20˚ ~ 70˚C) |
| Dimensions (H × W × D) | 5.5 × 5.5 × 1.25" (14 × 14 × 3.8 cm) |
| Weight | 0.65 lb (0.3 kg) |
| Shipping weight | 1.5 lb (0.68 kg) |
