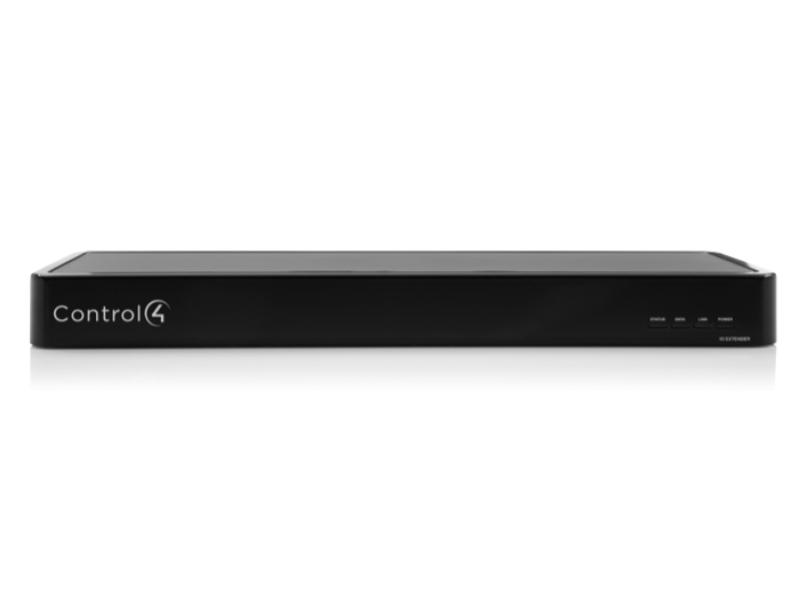

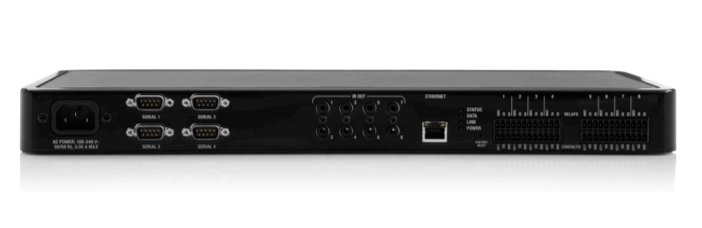

Control4 IO Extender With 8 IR Outputs - IO Extender
You may also like
Enjoy additional inputs and outputs for easy control and integration of all your A/V and other components in an attractive, rack-mountable form-factor. When paired with a Control4® Home Controller, the IO Extender is ideal for expanding control in large systems.
- Add more IR and serial outputs plus 8 additional contacts and 8 relays for expanded control in large systems.
- Flexible rack or wall mounting options.
- Easily add control capability to new or existing systems.
- Enjoy expanded home control options for large systems at a price that fits virtually every budget.
| Specifications | |
|---|---|
| Status LEDs | 4 |
| Serial Ports (Male DB9 RS232) | 4 |
| IR Outputs | 8 |
| Contacts | 8 |
| Relays | 8 |
| Network Connectivity | 10/100 BaseT Ethernet |
| Voltage | 100-240 VAC |
| Amps | 0.55 A |
| Hertz | 50-60 Hz |
| Wattage | 30 W |
| HxWxD | 1.59” × 16.84” × 6.34” (40.39mm × 427.74mm × 161.04mm) |
| Weight | 4.8lbs/2.18 Kgs |
| Power Cord | 1 |
| IR Emitter Cables | 6 |
| Rack Ears | 1 Set |
