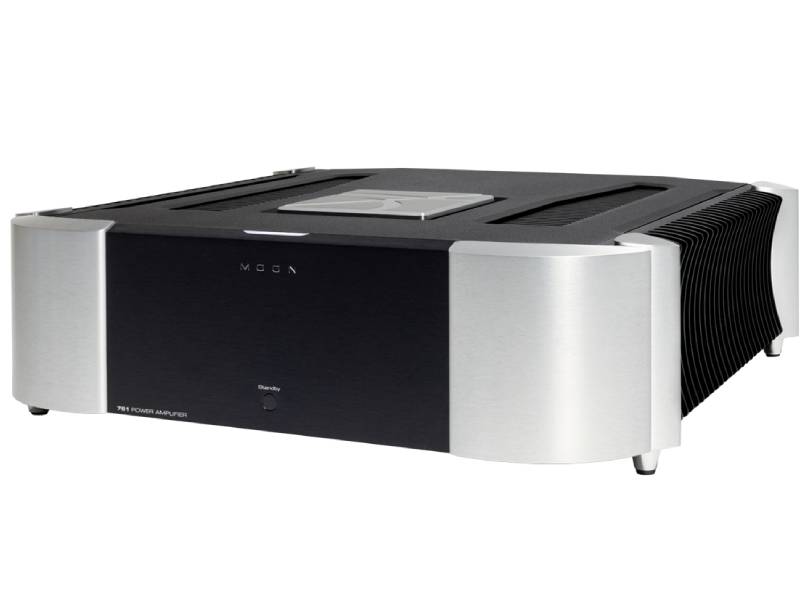

Simaudio Moon North Collection Power Amplifier - 761
You may also like
A signal that flows with uncompromising integrity free from coloration or excess
The MOON 761 has one job to perform, and it performs it with authority. This power amplifier effortlessly delivers delicate audio signals from a preamplifier to loudspeakers with absolute transparency and finesse.
Controlled Power
The MOON 761 is a stereo power amplifier designed to deliver consistent energy, even under demanding loads. Its dual-mono topology ensures full channel separation and independent power supply per channel. It outputs 200 watts into 8 ohms, 400 watts into 4 ohms, and up to 600 watts in mono mode. The MDCA amplification architecture reduces distortion without relying on global feedback, delivering a stable response and dynamic consistency at any level. A high damping factor ensures authoritative control over complex speaker loads while preserving soundstage integrity.
Architecture & Power Supply

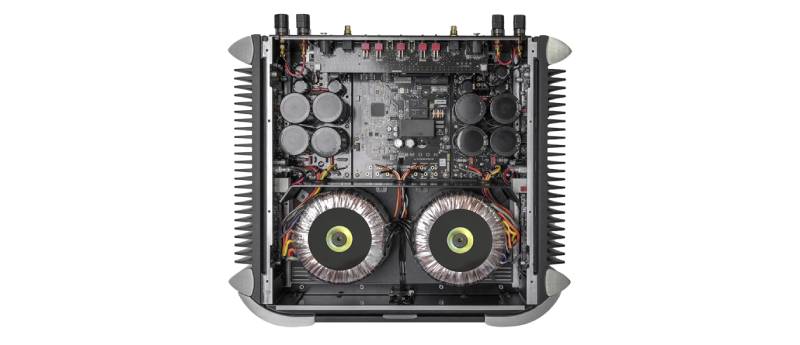

The 761 houses two custom low-noise 700 VA toroidal transformers and over 150,000 µF of power supply capacitance. This setup ensures fast, stable energy delivery during musical peaks. Side-mounted heatsinks maintain thermal stability, while the internal layout minimizes interference and preserves signal fidelity. With 31 dB gain, low output impedance, and extended bandwidth, the design prioritizes transparency and long-term consistency.
Integration & Use

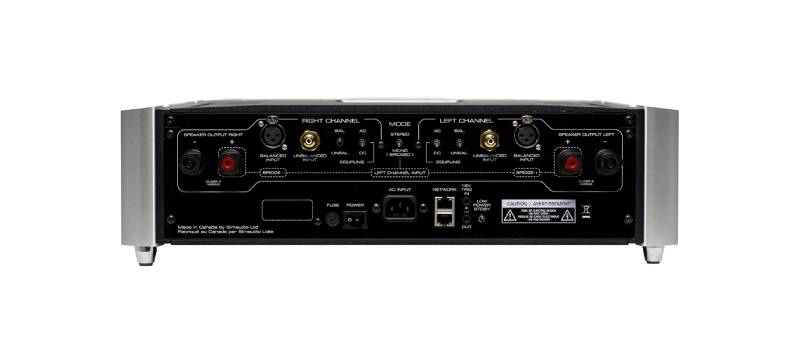

Engineered to integrate seamlessly into high-end systems, the MOON 761 provides balanced XLR and unbalanced RCA inputs, as well as a stereo/mono switch. Power consumption is reduced to 1.25 W in standby, with a full-power idle mode for instant responsiveness. Integration with MOON preamplifiers like the 791 is streamlined via MOONLink. The aluminium chassis, shielded circuits, and internal protections ensure long-term reliability for intensive daily use.
Design features
- MDCA – MOON Distortion-Cancelling Amplifier
- No Global Feedback Design
- MOON Transistors
- Dual Mono Configuration
- Monaural Mode Toggle Switch
- MOONLink
- Multicolour LED Indicator
In the box
- The following accessories should be included inside the box with your power amplifier:
- AC power cable
- 1 spare fast-blow fuse
- MOONLink
- Warranty and product registration information (USA and Canada only)
| FEATURES | |
|---|---|
| Output Power (Stereo 8 Ω) | 200 W |
| Output Power (Stereo 4 Ω) | 400 W |
| Output Power (Mono 8 Ω) | 600 W |
| Input Sensitivity | 1.1 V |
| Input Impedance | 47 kΩ |
| Gain | 31 dB |
| Frequency Response | 2 Hz – 100 kHz (+0 dB / –3 dB) |
| Crosstalk | –116 dB |
| Signal-to-Noise Ratio | 117 dB |
| Total Harmonic Distortion + Noise (@ 1 W) | 0.002% |
| Total Harmonic Distortion + Noise (@ 200 W) | 0.001% |
| Intermodulation Distortion | 0.002% |
| Damping Factor | 800 |
| Power Consumption (Idle) | 55 W |
| Power Consumption (Full Power Standby) | 50 W |
| Power Consumption (Low Power Standby) | 1.25 W |
| Shipping Weight | 79 lbs / 36 kg |
| Dimensions (width x height x depth) | 18.95 x 5.53 x 17.53 in 48.1 x 14 x 44.5 cm |
