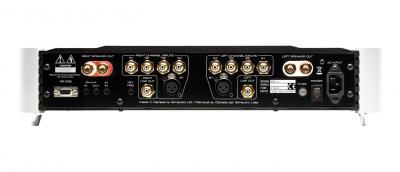

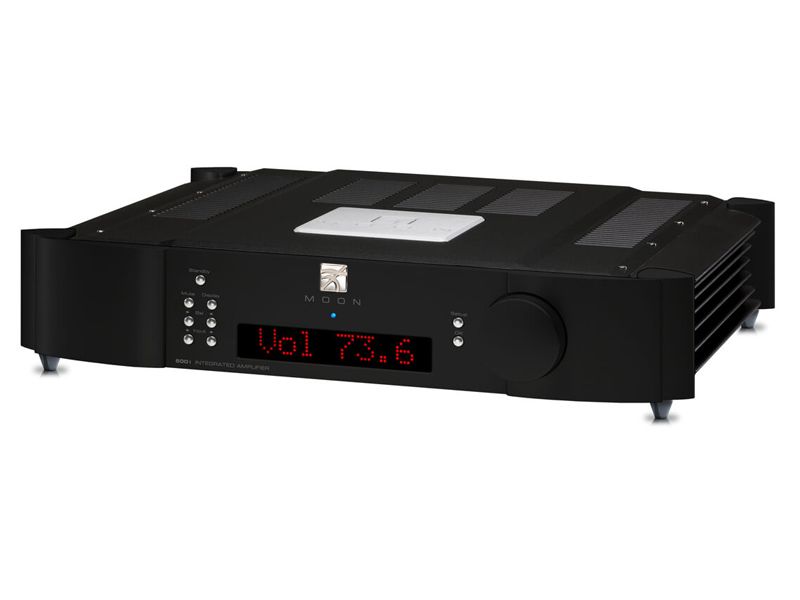

Moon by Simaudio Moon High-End Integrated Amplifier - 600iv2 Integrated Amp (B)
Literature
You may also like
Design features
- Our “no overall feedback” amplifier circuit design for more accurate musical reproduction.

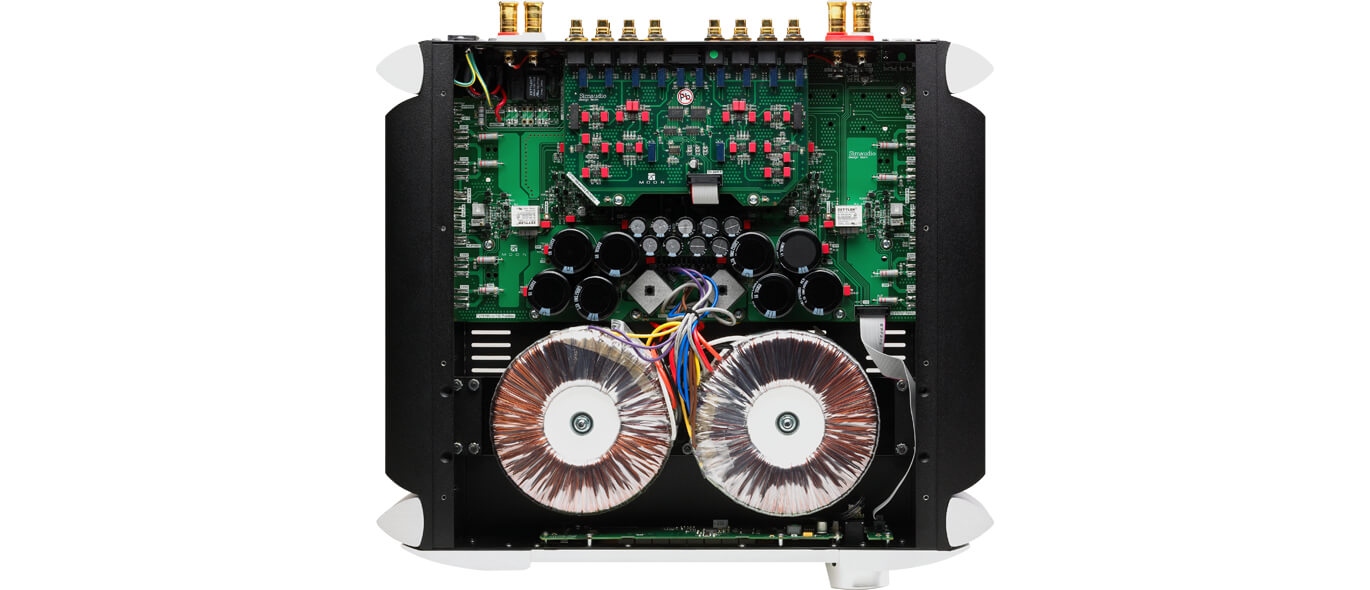

- An oversized dual-mono power supply.
- “Class A” power output to 5 watts for greater efficiency.
- Gain offset adjustment of ±10dB for each line input.
- Each line input is fully configurable to be “home theater ready”, whereby the 600i’s volume control is bypassed.
| Specifications | |
|---|---|
| Output Power at 8Ω | 125 W per channel |
| Output Power at 4Ω | 250 W per channel |
| Input Sensitivity | 490mV - 6.0V RMS |
| Input Impedance | 23,700Ω |

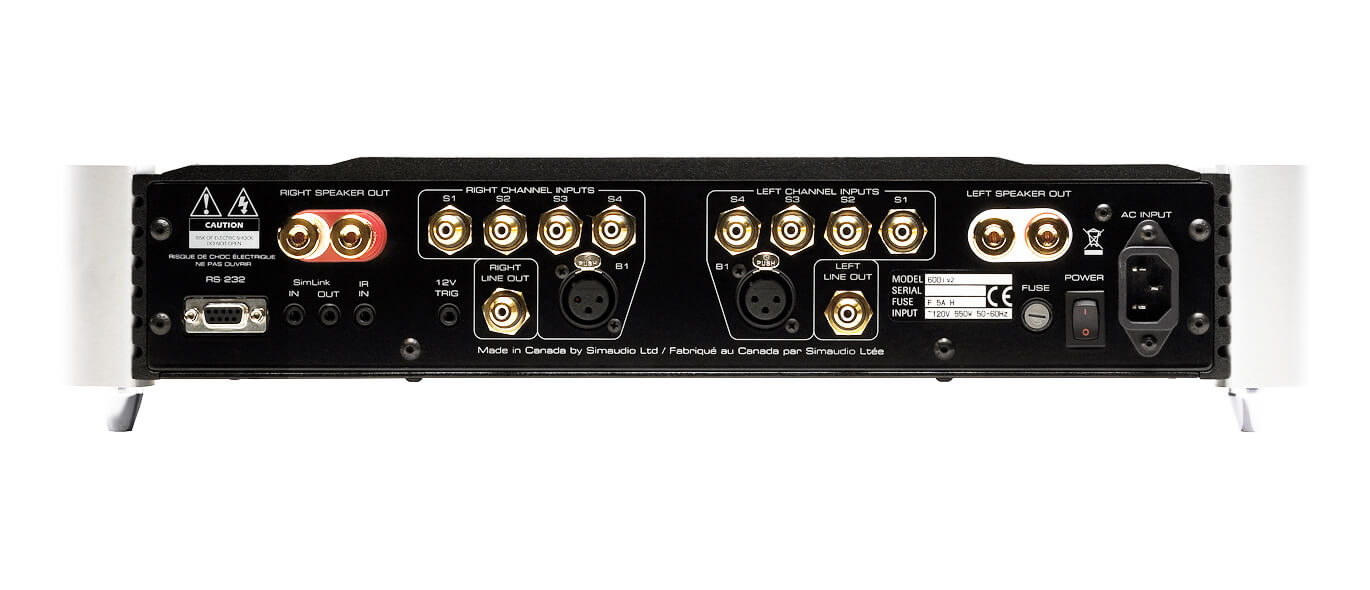

| Inputs (RCA / XLR) | 4 pairs / 1 pair |
| Gain | 37dB |
| Frequency response (full range) | 10Hz - 100kHz +0/-0.1dB |
| Crosstalk @ 1kHz | -100dB |
| THD (20Hz - 20kHz @ 1 W) | 0.015% |
| THD (20Hz - 20kHz @ 125 W) | 0.04% |
| Intermodulation distortion | 0.02% |
| Shipping weight | 48 lb / 21 kg |
| Dimensions (width x height x depth) | 18.75 x 4.0 x 18.1 in |
