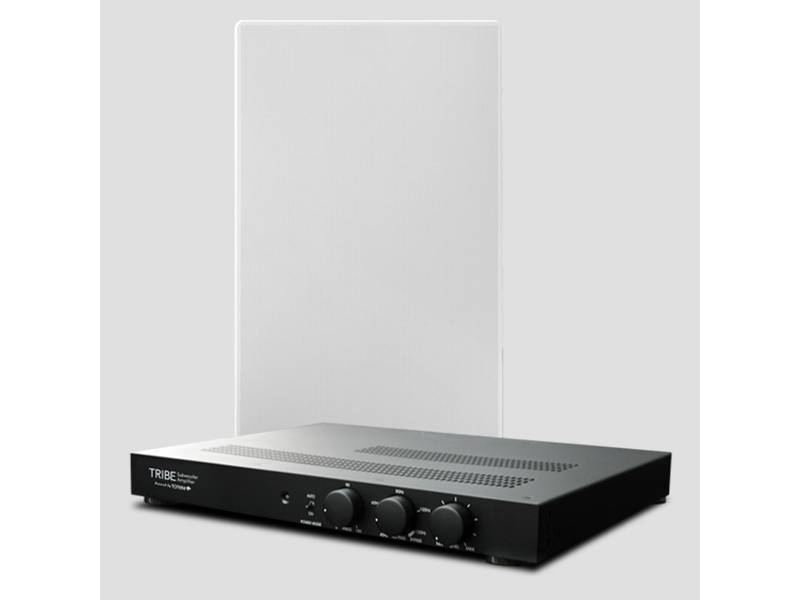

Totem Acoustic 12 Inch Tribe In-Wall Speaker - Tribe In-Wall Sub 12 (SW)
Literature
You may also like
Astonishing presence
Designed to seamlessly integrate with the Tribe Series and immerse the listener in a totally realistic 3D sonic experience, the Tribe Sub In-Wall Sub 12 redefines exactness, speed and musicality. For easy use under any conditions, it performs with astonishing presence, no matter the size of your space.
The Tribe In-Wall Sub 12 incorporates a high power 12 inch driver, featuring a flat sandwich cone design and a 5.25 inch voice coil, and matching 12” Passive. Quick, smooth and articulate, the 12 inch active driver has been specially designed to function in tandem with the passive radiator, permitting quickness, incredible energy flow and unparalleled in-wall musicality.
| Specifications – Tribe In-Wall Sub 12 | |
|---|---|
| Design: | Full back-boxed, high-performance loudspeaker. Only 1 Double 12 subwoofer can be connected to a Tribe Amplifier. Must be affixed to wood studs, not aluminum. |
| Frequency Response: | 22 Hz – 200 Hz |
| Recommended Power: | Supplied 500 W external Totem amplifier |
| Woofer: | 1 active and 1 passive 12″/ 30.48 cm multi-layer Kevlar honeycomb |
| Dimensions (w x h x d): | 16.85″ x 28.27″ x 3.78″ / 428 x 718 x 96mm |
| Cutout: | 14.57″ x 27.16″ / 370 x 690mm |
| Grille Type: | magnetic, paintable, virtually bezel-less white metal (grills may be painted to match your decor) Amplifier and rack ears included |
| Speaker Terminals: | gold plated 5 way banana plugs |
| Weight: | 22lb / 9.98kg |
| Specifications – Tribe Amplifier | |
| Amplifier Specs: Maximum continuous power: | 500 watts |
| Amplifier Specs: Distortion: | <0.1% @ Maximum Rated Output |
| Amplifier Specs: Input Impedance: | >20 kΩ |
| Amplifier Specs: Frequency response: | 20Hz – 200Hz |
| Front Panel: Phase Control: | 0° – 180° continuously variable |
| Front Panel : Power mode On/Auto Switch | Logo Power Indicator, Red in standby and Blue when active, fading after 30 seconds |
| Front Panel | Level Control Adjusts Input Signal Level/Volume |
| Front Panel: Low Pass Filter: | variable from 40Hz – 120Hz, Bypass when turned completely to the right |
| Rear Panel: Line In Connectors: | 1 Pair RCA |
| Rear Panel: Line Out Connectors: | 1 Pair RCA |
| Rear Panel: Output Connectors to Sub Module: | 1 Pair Binding Posts |
| Rear Panel: Mains Voltage Connector: | 100-120 V / 220-230 V – Auto Sensing |
| Rear Panel: Mains Voltage Fuse Holder: | T5AL, 250 Volt |
| Rear Panel Switches: Power Switch | Model Select Switch:
Tribe In-wall Sub 8 – select SUB8 Tribe In-wall Sub 12 – select SUB12 |
| Dimensions: Overall Dimensions incl. Feet (w x h x d): | 17” x 2.25” x 14” / 43.18 x 5.715 x 35.56 cm |
| Dimensions: Width with Rack Ears : | 19” / 48.26 cm |
| Weight | Net weight: 6.8 kg (15 lbs.) |
